一

基本說明

備注

 Basic information

Remark

1

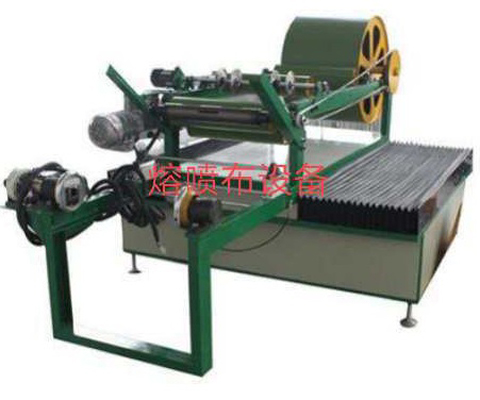

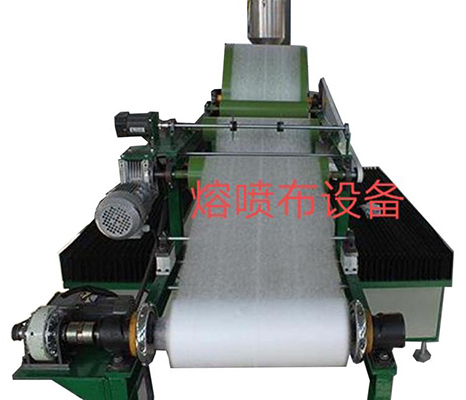

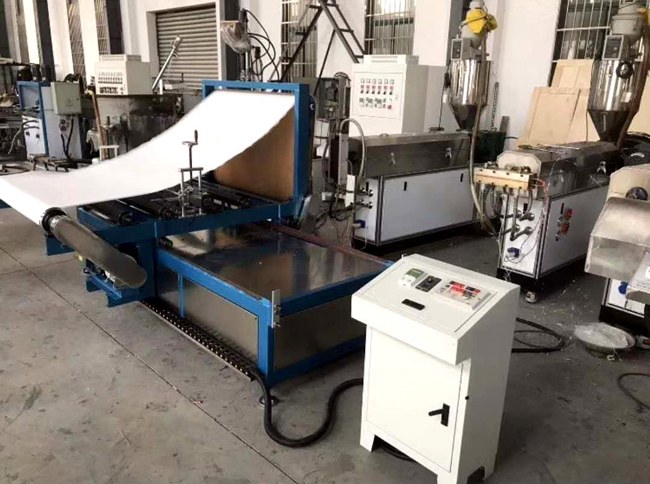

設備簡介

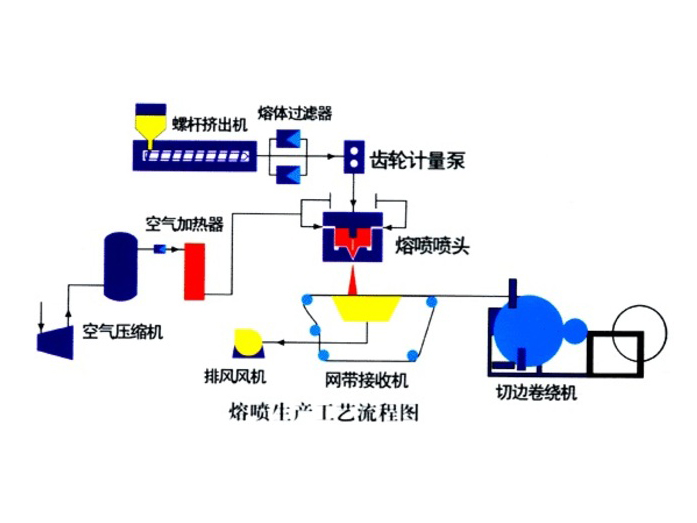

人員上手快，大大提高生產效率，僅需一人操 作，該產線實現熔噴布的全自動化生產，主要包含原材料上料、噴涂、成型、可調剪裁、滾筒收料等工藝，完成從原材料到熔噴布的整個生產過程。生產的熔噴布具有65-95可調，產能每天可生產300-450公斤，可適用于醫療、電子、礦業、建筑等行業。

 Equipment brief introduction

Easy for operator, greatly improve production efficiency, only one operator required, the production line to achieve the full automatic production of melt-blown, Mainly includes raw material feeding, spraying, molding, adjustable cutting, drum material collection and other processes to complete the whole production process from raw materials to melt spray cloth. The melt-blown cloth produced has 65-95 adjustable capacity and can produce 300-450 kg per day, which can be used in medical, electronics, mining, construction and other industries.

2

設備重量

≤4000kg，地面承重≤500KG/sqm

Equipment weight

≤4000kg，Ground load≤500KG/sqm

3

產能

350-450公斤/天

Productivity

350-450Kg/day

4

電源及功率

AC380V，50Hz，約25kw

Electric and power

AC380V，50Hz，Approx 25kw

5

氣源及用量

0.5-0.8Mpa 0.8cbm/min

 Air pressure

0.5-0.8Mpa 0.8cbm/min

6

設備外形尺寸

長x寬x高 7800mm×1300mm×2100mm

Overall size

LxWxH 7800mm×1300mm×2100mm

7

使用環境

溫度10~35℃、濕度5-35%HR, 無可燃性、腐蝕性氣體、無粉塵(潔凈度不低于10萬級)

Use environment

Temperature 10~35℃, humidity 5-35% HR, non-flammable, corrosive gas, dust free (cleanliness not less than 100,000 class)

8

生產合格率

≥85%

來料不滿足要求、員工不當操作除外

Product qualify rate

≥85%

Except the incoming materials do not meet the requirements and the improper operation of the staff

9

設備故障率

≤2%

指設備自身所產生的故障

Equipment failure rate

Failure of the device itself

二

技術性能參數

Technical performance parameters

機架全部高強鋼板焊接成型，抗磨損；

一體化生產,僅需兩人操作；

高速生產,日產350-450公斤；

生產多種不同產品,更換模具可生產寬度400-600mm的產品。

The frame all high strength steel plate welding molding, anti-wear;

Integrated production, only two people to operate;

High-speed production ,350-450 kg per day;

Produce a variety of different products, the replacement mold can produce a width of 400-600 mm products.

三

其他

Others

設備出廠前調試需要需方提供PP專用熔噴布顆粒25公斤

25Kg of PP special meltblown particles must be provided by buyer for machine commissioning before delivery
